A rapid and visual detection assay for Senecavirus A based on recombinase-aided amplification and lateral flow dipstick

1 Introduction

Senecavirus A (SVA) is a single-stranded, positive RNA virus belonging to the genus Senecavirus within the family Picornaviridae (Adams et al., 2015; King et al., 2012). SVA is among the pathogens associated with vesicular diseases in pigs, characterized primarily by acute mortality in neonatal piglets and the development of vesicular ulcers in the nostrils, hoof coronets, and coronary arteries of adult pigs (Joshi et al., 2016; Vannucci et al., 2015). Consequently, distinguishing disease infected by SVA from other swine vesicular diseases such as foot-and-mouth disease (FMD), swine vesicular disease (SVD), and vesicular stomatitis (VS) based solely on clinical symptoms has been a challenging task. Furthermore, this disease lacks distinct seasonal epidemic trends, posing additional challenges for prevention and control efforts (Hales et al., 2008). The SVA genome is approximately 7300 bp, comprising a 5’ untranslated region (5′ UTR), an open reading frame (ORF), and a 3’ untranslated region (3′ UTR) (Lin et al., 2009). The ORF consisted of a leader protein (L) and three precursor proteins (P1, P2, and P3) (Adams et al., 2016; Hales et al., 2008; Venkataraman et al., 2008). Subsequently, these regions are further processed by the virus-encoded cysteine protease (3Cpro) to form mature functional viral proteins (L-VP4-VP2-VP3-VP1-2A-2B-2C-3A-3B-3C-3D) (Hales et al., 2008; Leme et al., 2015).

In 2002, SVA was identified in cultivating transformed embryonic retinal cell lines (C6 cells) grown at a U.S. research company (Knowles et al., 2006). Following isolation and purification, the virus was named SVV 001 (Hales et al., 2008). Since the identification of SVV001, several studies have shown that it is closely associated with subsequent sporadic cases of porcine idiopathic vesicular disease (PIVD) in the USA (Bracht et al., 2016; K. et al., 2012) and Canada (Pasma et al., 2008). Interestingly, a series of outbreaks of PIVD occurred in Brazil between 2014 and 2015, subsequently confirmed to be caused by SVA infection. This confirmed that SVA is the pathogen responsible for swine vesicular disease (Vannucci et al., 2015). Since then, two outbreaks of SVA infections have been reported in the Brazilian region in 2018 and 2020 (Leme et al., 2019; Vieira et al., 2022). Additionally, several countries within the areas of Europe, Southeast Asia, and Asia have published reports of SVA infections (Arzt et al., 2019; Hause et al., 2016; Saeng-chuto et al., 2017; Sun et al., 2017; Wu et al., 2017; Xu et al., 2017). The above situation implies that SVA is gradually prevalent, which will pose a severe economic threat to the swine industry worldwide. Therefore, the prevention and control of SVA is crucial to avoid further dissemination.

Currently, a number of detection methods for SVA have been developed in the laboratory, including PCR (Pinheiro-de-Oliveira et al., 2019; Zhang et al., 2019), qPCR (Mu et al., 2020; Zhang et al., 2019), and ELISA (Dvorak et al., 2017; Yang et al., 2012). These methods are designed to prevent SVA infections from affecting the economy of the pig farming industry. However, these detection methods require a thermocycler for target gene amplification or proficient laboratory techniques, rendering them unsuitable for laboratories with limited infrastructure or field inspections.

Isothermal nucleic acid amplification is a technique developed in recent years that uses specific enzymes to amplify target genes under constant temperature conditions, with methods including methods such as Loop-mediated isothermal amplification (LAMP) (Peng et al., 2024; Wang et al., 2024) and recombinase-aided amplification (RAA) (Feng et al., 2024; Zhou et al., 2024). These methods require only a constant-temperature heating block or even body heat to achieve target gene amplification, significantly reducing the reaction time and complexity of nucleic acid amplification (Kolm et al., 2019). However, the design of the LAMP primer is more complex and technically challenging. In contrast, the primer design for RAA is straightforward, requiring only the control of the target gene length within 500 bp and the design of two primers with lengths of 30~35 bp. The RAA reaction primarily utilizes recombinase, single-stranded binding proteins (SSBs), and DNA polymerase with strand displacement activity to initiate the reaction. It can complete nucleic acid amplification in less than 40 minutes. This method has been used to detect a variety of pathogens (Hai, 2010; He et al., 2021; Li et al., 2023; Wu et al., 2022; Zhao et al., 2024b).

Lateral flow dipstick (LFD) is a technique for rapidly detecting nucleic acid samples based on capillary chromatography, molecular hybridization, and colloidal gold (Jaroenram et al., 2009). The method is utilized to detect biomarkers in nucleic acid samples, requiring neither specialized equipment nor operational expertise, thus rendering it accessible to a broad range of users (Jaroenram and Owens, 2014). The combination of RAA and LFD is based on the principle that the RAA reaction forms amplified products labeled with biotin and specific fluorescent antibodies, which then interact with the colloidal gold-labeled antibodies in the LFD, further cross-linking with biotin on the test (T)-line, ultimately achieving the visual detection of the target product (Chow et al., 2008). The RAA-LFD assay has been successfully used for the detection of a variety of pathogens (Bienes et al., 2022; Homklinkaew et al., 2023; Hou et al., 2022; Li et al., 2022).

In this study, the most optimal RAA primers and probes were designed for the most conserved region of the SVA 3D gene. The RAA products were detected using LFD, and a highly sensitive and specific SVA RAA-LFD rapid visualization assay was established. This method overcomes the difficulties of ordinary PCR and qPCR, which require expensive nucleic acid amplifiers. It provides a reliable method for the initial screening and detection of SVA in ordinary laboratories and the field.

2 Materials and methods2.1 Viruses

SVA, foot and mouth disease virus (FMDV), african swine fever (ASFV), porcine circovirus type 2 (PVC2), japanese encephalitis virus (JEV), classical swine fever virus (CSFV), and porcine parvovirus (PPV) were obtained from the Laboratory of Veterinary Microbiology and Immunology, South China Agricultural University.

2.2 Clinical swine samples

In 2018, forty-four clinical swine samples suspected of SVA infection were obtained from multiple pig farms in Guangzhou and were stored at -80°C for further utilization. RNA was extracted from each clinical sample using the E.Z.N.A.® FFPE RNA Kit (Omega Bio-Tek, Inc., Connecticut, USA) and stored at -80°C in our laboratory.

2.3 Design and screening of primers

According to previous studies conducted in our laboratory and the research conducted by Li et al (Li et al., 2019), the most conserved region of SVA is located within the 3D gene, which can be a suitable target for RAA amplification. Thirty-seven SVA sequences were obtained from the National Center for Biotechnology Information (NCBI) (GenBank accession numbers: MF615501.1, MF615506.1, MF615507.1, MF615508.1, MF615509.1, MF189001.1, MF189000.1, KR063107.1, MF460448.1, MH885100.1, MH885099.1, MH634510.1, MH634508.1, MH634506.1, MH634518.1, MH634522.1, MH634516.1, MH716015.1, MHS88717.1, MH779611.1, MH817445.1, MH316117.1, MH316116.1, MK357117.1, MN781984.1, MN781983.1, MN781981.1, KRO63107.1, ON369394.1, ON868377.1, KR063109.1, MZ818785.1, MZ375462.1, KY486166.1, KY486165.1, MZ395819.1, MZ733980.1). The 3D gene regions of the above sequences were aligned using MegAlign 7.1 (DNAStar, USA) to confirm the most conserved region. Subsequently, six primer pairs were designed within this region using Oligo 7.0 (Molecular Biology Insights, Inc, USA) and Primer Premier 5 (Premier Biosoft International, Canada) (Table 1). The specificity of the six pairs of primers for SVA was verified by the RAA reaction provided by the RAA nucleic acid amplification kit based on agarose gel electrophoresis (AGE) (Jiangsu Qitian Gene Biotechnology Co., Ltd., Jiangsu, China), and the most specific primers were screened. Components including 25 μL rehydration buffer V, 2.0 μL forward primer (10 μM), 2.0 μL reverse primer (10 μM), and 17.5 μL nuclease-free water were sequentially added to the lyophilized enzyme base reaction unit in the kit. Then, the walls of the tubes were flicked by hand and centrifuged transiently for 10 seconds. To stimulate the reaction, 2.5 μL magnesium acetate was introduced into the inside of each tube cap, and 1μL of genomic DNA was added as a template. Additionally, the ddH2O and positive samples were added to the separately formulated reaction system as negative and positive controls, respectively. After 40 minutes incubation period at 37°C, 50 μL of chloroform and phenol mixture (1:1) was added to purify the amplicons. Finally, the supernatant was extracted for analysis using 2% AGE.

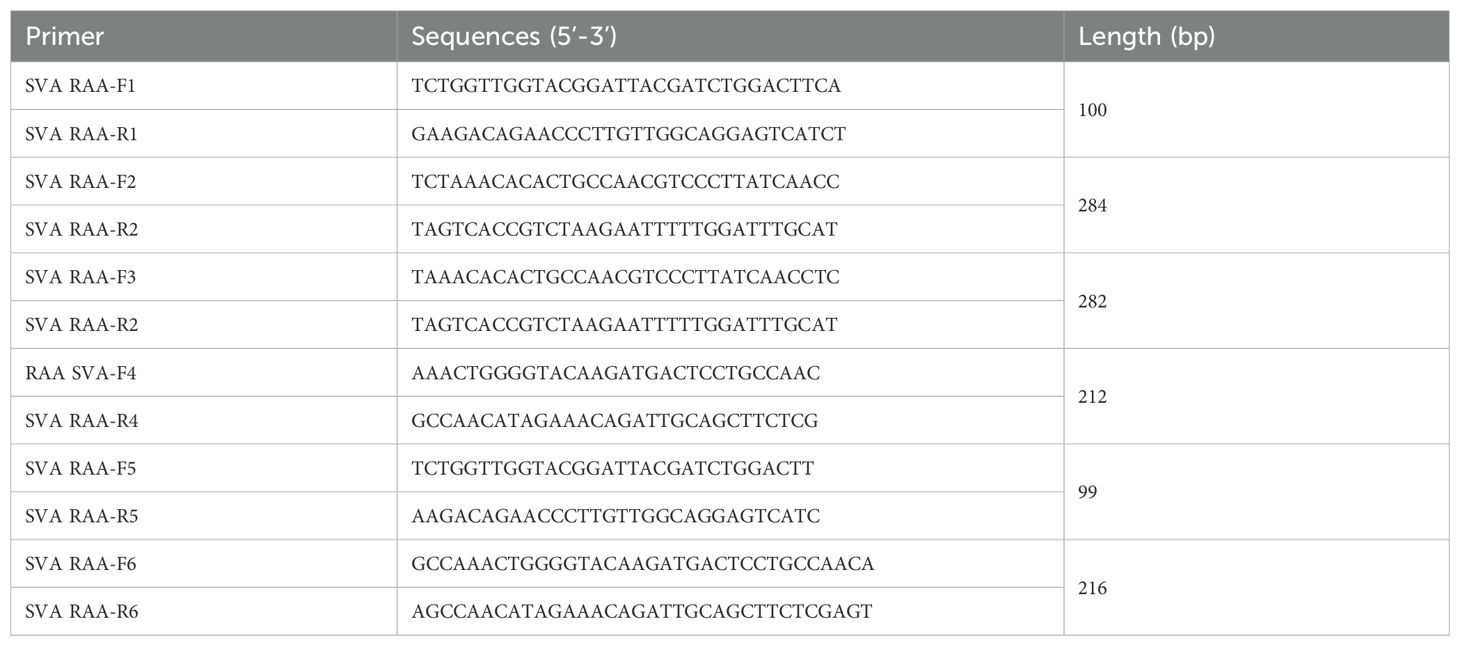

Table 1. The primers of the 3D-based RAA basic reaction for SVA were used in this study.

2.4 Establishment of the SVA RAA-LFD assay

Following the primer screening, a specific probe was developed and situated within the middle of the primer pairs. This probe was labeled with 6-carboxy-fluorescein (FAM) at the 5’ end, modified with a polymerase extension blocking group (C3 spacer) at the 3’ end, and integrated with a tetrahydrofuran abasic-site mimic (THF) moiety positioned 30 nucleotides away from the 5’ end. Additionally, the reverse primer’s 5’ end was biotin-labeled. All primers were synthesized by Sangon Biotech (Sangon Biotech (Shanghai) Co., Ltd, Shanghai, China). The RAA basic reaction for LFD was performed according to instructions provided in the nfo-based RAA nucleic acid amplification kit (Jiangsu Qitian Gene Biotechnology Co., Ltd., Jiangsu, China). The nfo-based RAA reaction system was based on the AGE-based RAA reaction volume with the addition of 0.6 μL of fluorescent probe (10 μM) and an adjusted volume of nuclease-free water (16.9 μL). The reaction was carried out under the same time and temperature conditions, following 10 μL of nfo-based RAA amplicons were taken and diluted with 50 μL of PBS and later inserted into the LFD strips (Nanjing Wobo Biotechnology Co., Ltd., Nanjing, China) for 2 minutes. The design of RAA primers, Nfo-probe, and the principle of the RAA-LFD assay are illustrated in Figure 1.

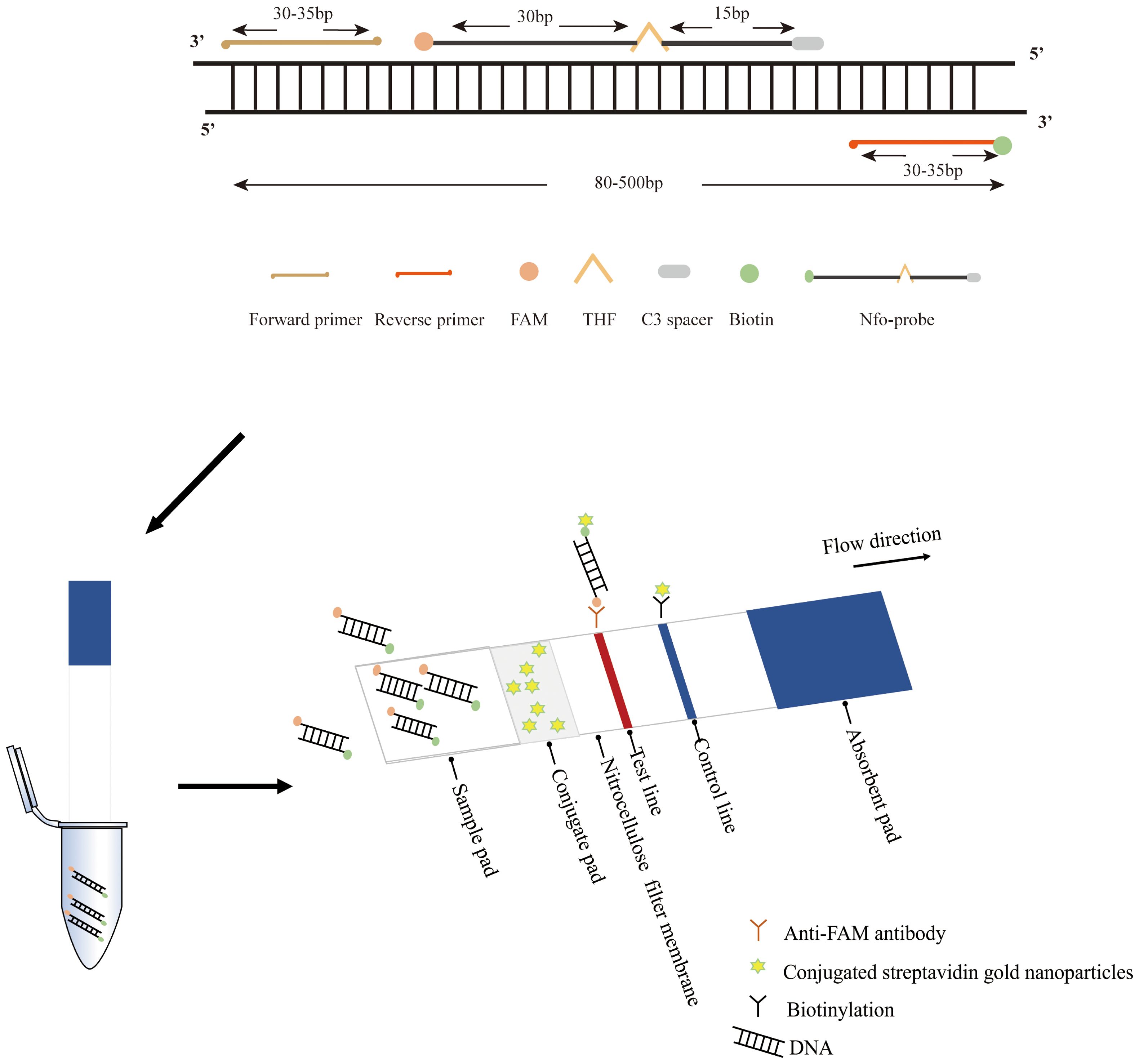

Figure 1. The principle of RAA primers, nfo-probe, and the RAA-LFD assay.

2.5 Optimization of the SVA RAA-LFD assay

Initially, the RAA basic reaction was conducted with a fixed reaction time of 40 minutes at a gradient temperature from 34°C to 40°C. The results were visualized using a nucleic acid test strip. The test strips were positioned against a white backdrop, and the T-lines were digitally outlined using ImageJ 2 software (National Institutes of Health; Bethesda, MD, USA) to quantify color intensity. This process was conducted three times, and the collected data were subsequently inputted into GraphPad 8.0 software (Graph Pad Software, La Jolla, CA, USA) to generate a line graph illustrating the grayscale values of the T-lines at the different reaction temperatures. Subsequently, the RAA basic reaction was executed at the optimal temperature determined in the preliminary step, with reaction times varying from 5 to 40 minutes. The results were visualized using a nucleic acid test strip. Applying the methodology above, a line graph was formulated to assess the grayscale values of the T-line at various reaction durations.

2.6 Construction of the recombinant plasmid

The SVA 3D gene was amplified by PCR with designed primers (SVA 3D-F: 5’-TGATGACTGAGCTAGAGCCTGG-3’, SVA 3D-R: 5’-TCGAACAAGGCCCTCCATCTTG-3’). The amplicon was ligated to pMD18-T Vector (Takara Biomedical Technology Co., Ltd., Japan) and transformed into Escherichia coli DH5α. The pMD18-SVA-3D plasmid was subsequently confirmed in LB solid medium containing 1‰ ampicillin and expanded in LB broth for overnight incubation at 37°C. Finally, the plasmid was extracted using the Plasmid Mini Kit II (Omega Bio-Tek, Inc., Connecticut, USA) according to the manufacturer’s instructions. A NanoDrop™ 1000 Spectrophotometer (Thermo Fisher Scientific, WymanStreet, USA) was used to measure the concentration of the extracted plasmid and calculate copies using the following equation: Copy number per unit (copies/µL) = (concentration of DNA (ng) × 6.022 × 1023)/(entire length of template × 109 × 650) (dsDNA copy number calculator (uri.edu).

2.7 Analysis of the specificity and sensitivity of the SVA RAA-LFD assay

SVA and other laboratory-preserved viruses were used as templates to validate the specificity of the developed assay. The lowest detection limit of SVA RAA-LFD was determined using ten-fold serial dilutions of pMD18-SVA-3D plasmid, DNA amplification products, and viral fluid at a concentration of 108.25 TCID50/mL as templates. PCR and RT-qPCR methods were employed as parallel experiments for comparison.

2.8 RCR assay

The reaction system for PCR (Nanjing Vazyme Biotech Co., Ltd., China) is as follows: 25 µL of 2×Phanta Max Buffer, 1µL of dNTP Mix (10 mM each), 1µL of Phanta Max Super-Fidelity DNA Polymerase, 2 µL of forward primer (10 µM), 2 µL of reverse primer(10 µM), 1 µL of DNA template, and 19 µL of ddH2O. SVA specific forward primer: SVA PCR-F (5’-CAAGGAATTTGAATATGACATGG-3’) and reverse primer: SVA PCR-R (5’-GCAGCTTCTCGAGTAGTGTTCC-3’) were described previously (Qian et al., 2016). Amplicon product size was 298 bp. The thermal cycling conditions: one cycle at 95°C for 2 min; 35 cycles at 95°C for 15 s, 57°C for 30 s, and 72°C for 30 s, and one cycle at 72°C for 5 min. Amplicon products were analyzed by 2% AGE.

2.9 RT-qPCR assay

The reagent HiScript II Q Select RT SuperMix for qPCR (Nanjing Vazyme Biotech Co., Ltd., China) was used to reverse transcribe RNA into cDNA. 9 µL 2 × ChamQ SYBR qPCR Master Mix. The reaction system for qPCR is as follows: 5 µL 2 × ChamQ SYBR qPCR Master Mix (Nanjing Vazyme Biotech Co., Ltd., China), 0.2 µL forward primer (10 µM), 0.2 µL reverse primer (10 µM), 1 µL of DNA template, and 3.6 µL of ddH2O. SVA specific forward primer(SVA qPCR-F: 5’-GGGTAACACTGACACCGATTT-3’) and reverse primer (SVA qPCR-R: 5’-TCGAGATCGATCAAACAGGAAC-3’) were designed based on the VP1 gene region with a length of 87 bp (Bracht et al., 2016). The thermal cycling conditions: 48°C for 5 min, 95°C for 10 min, 40 cycles of 95°C for 5 sec, and 60°C for 1 min.

2.10 Analysis of repeatability of the SVA RAA-LFD assay

Several concentrations of the pMD18-SVA-3D plasmid were used as templates to assess the reproducibility of the established assay, including 3.86 × 104 copies/µL (strongly positive), 3.86 × 102 copies/µL (moderately positive) and 3.86 × 101 copies/µL (weak positive). The experiment was repeated three times.

3 Results3.1 Design and screening of SVA RAA primers

The six candidate primers were evaluated using the RAA basic assay, conducted at 37°C for 40 minutes, with the GD-SVA2-2018 strain as the template. The 2%AGE results (Figure 2) demonstrated that the primer pair SVA RAA-F2/R2 produced the brightest specific bands compared to the other groups. These findings indicate that the SVA RAA-F2/R2 primer pair exhibits the highest specificity. Consequently, the SVA RAA-F2/R2 primer pair was selected for further research in the RAA-LFD assay.

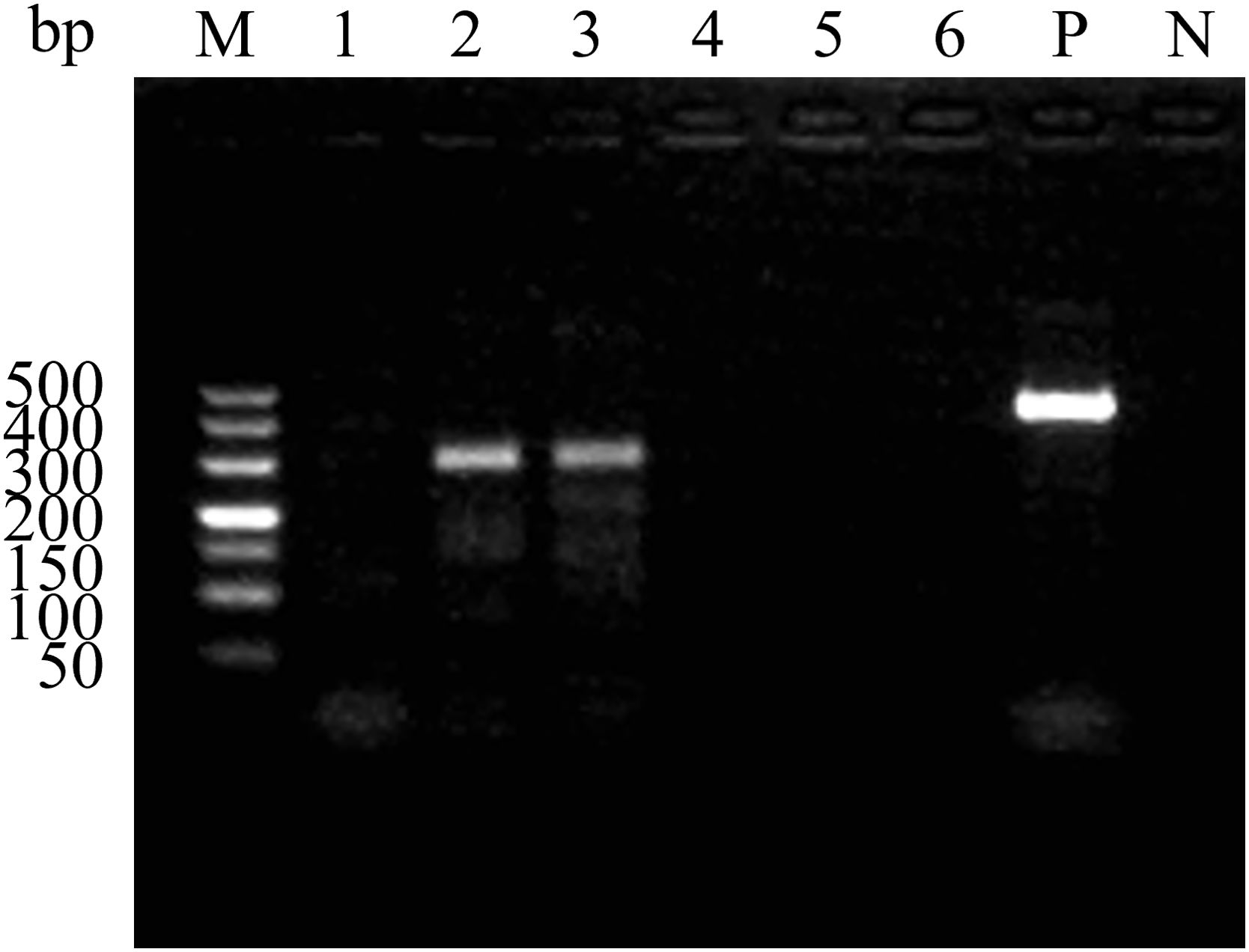

Figure 2. Amplification results of the RAA primer pairs. Serial number 1 to 6 are SVA RAA-F1/R1, SVA RAA-F2/R2, SVA RAA-F3/R2, SVA RAA-F4/R4, SVA RAA-F5/R5, and SVA RAA-F6/R6. M, 500 bp DNA marker; P, Positive control; N, Negative control.

3.2 Establishment of initial SVA RAA-LFD assay

To establish the SVA RAA-LFD assay, we have successfully designed an ideal fluorescent probe according to the gene sequence amplified by the SVA F2/R2 primer pair, nfo-probe (5’-6-FAM-TTTGTTCTACACATACATGTCAGAGTACGC-THF-CATCGGGTTTTCTCC-C3 spacer-3’) (Figure 3A). This design fully complies with the criteria for a good nfo-probe. The 5’ end of the reserve primer SAV RAA-R1 was also modified with biotin as RAA-FB: 5’-(Biotin) TAGTCACCGTCTAAGAATTTTTGGATTTGCAT-3’. Subsequently, the nfo-probe and modified and screened primers were used in the nfo-based RAA basic reaction, and LFD detected the amplicons. The results (Figure 3B) showed that the control (C)-line in both the negative control and the positive test groups was blue, indicating that the test strip was valid. The T-line in the negative control group showed no color, and the T-line in the SVA experimental group was red, indicating that the test result was positive and that the SVA RAA-LFD assay was initially established.

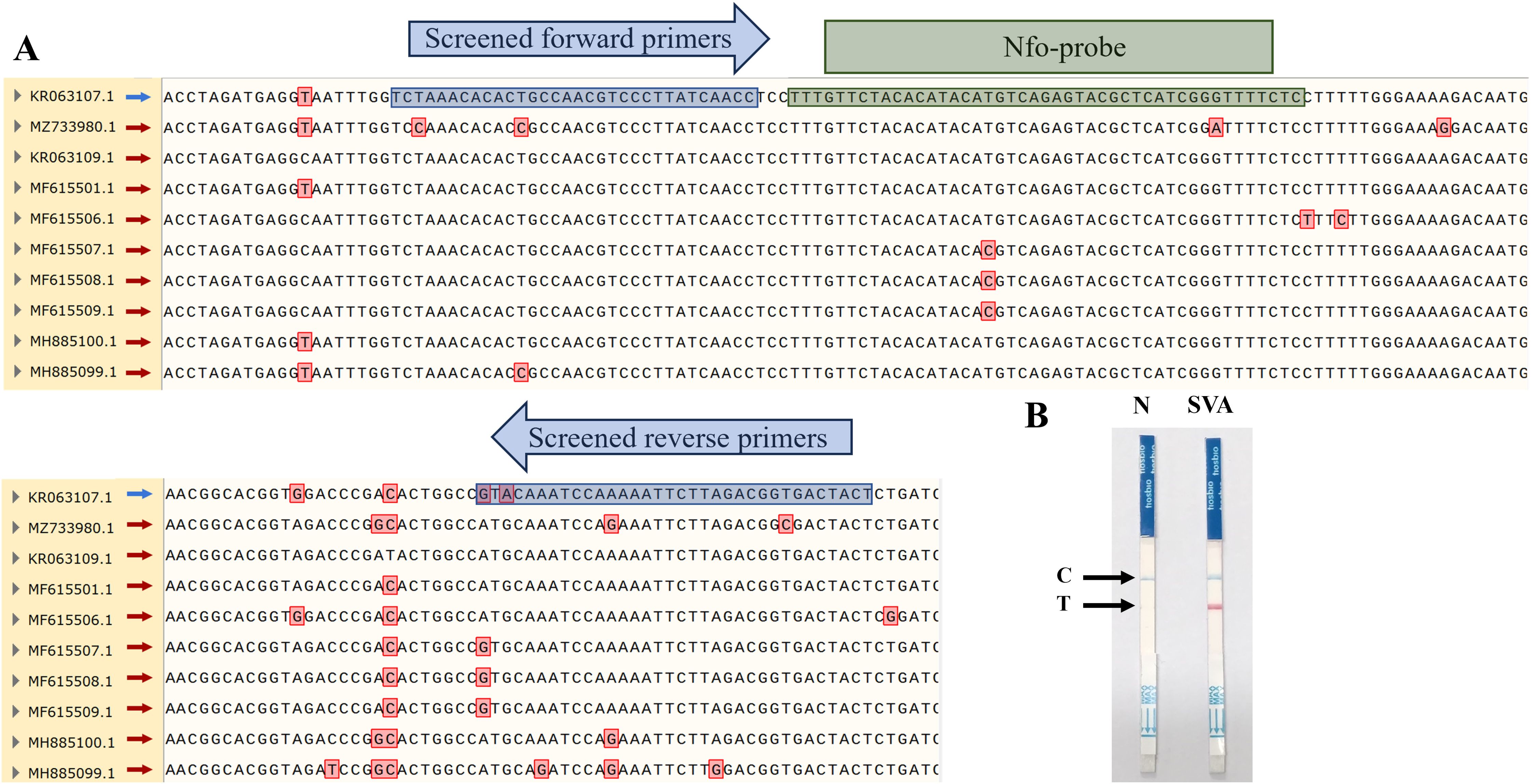

Figure 3. Partial results of multiple sequence alignment for SVA 3D gene and establishment of SVA RAA-LFD assay. (A) Red boxes represent nucleotide mutation sites in the alignment results. Blue boxes represent the binding sites of screened primers. Green boxes represent the binding sites of the nfo-probe. (B) Preliminary results of RAA-LFD for SVA detection.

3.3 Optimization of SVA RAA-LFD reaction conditions

To achieve the optimal reactivity performance of the SVA RAA-LFD assay, the preferred temperature and time for the RAA basic reaction were evaluated. RAA basic reactions were carried out at seven different temperatures from 34°C to 40°C (34°C, 35°C, 36°C, 37°C, 38°C, 39°C, and 40°C) for 40 minutes in a thermostatic. Subsequently, the RAA basic reaction target amplicon was detected by LFD under different temperature gradients. The results indicate that the T-lines of all test strips appeared red, demonstrating the effectiveness of the test strips within the temperature gradients. The result of the gray value analysis of the T-line (Figure 4A) showed that 35°C was the optimal reaction temperature for the SVA RAA-LFD assay. Furthermore, the highest value gray value analysis of the T-line was observed at 15 min (Figure 4B), indicating that 15 minutes was the optimal reaction time for the RAA basic reaction.

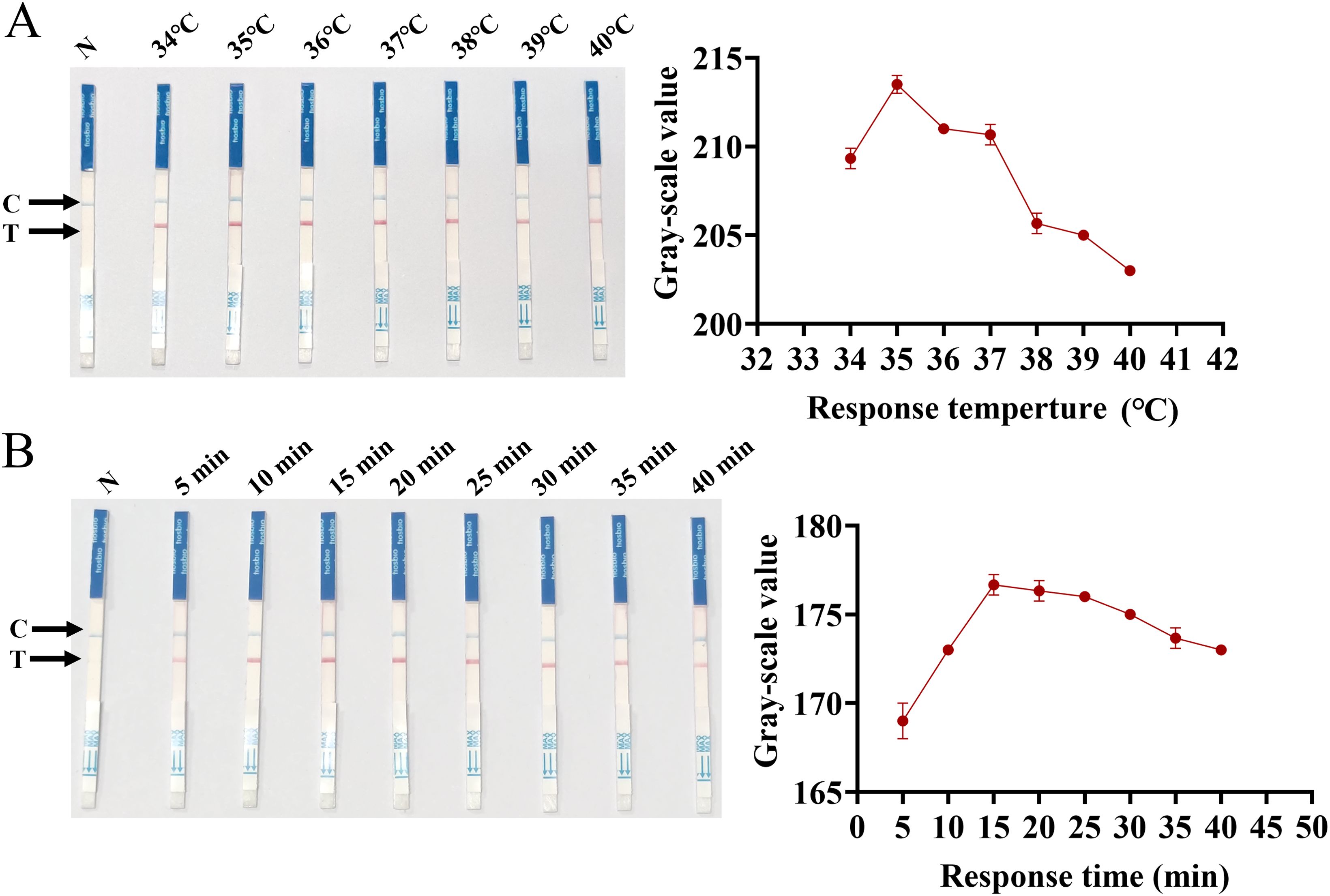

Figure 4. Optimization of SVA RAA-LFD reaction conditions. (A) Optimization of temperature for the RAA basic reaction. (B) Optimization of time for the RAA basic reaction.

3.4 Analytical specificity of the SVA RAA-LFD assay

As shown in Figure 5, in the analytical specificity analysis, the SVA RAA-LFD only produced visible red bands on the T-line for SVA. None of the other clinically important porcine pathogens, such as FMDV, ASFV, PCV2, JEV, CSFV, and PPV, produced visible bands on the T-line. The specificity of the SVA RAA-LFD assay was further validated by three independent technicians, confirming its high specificity.

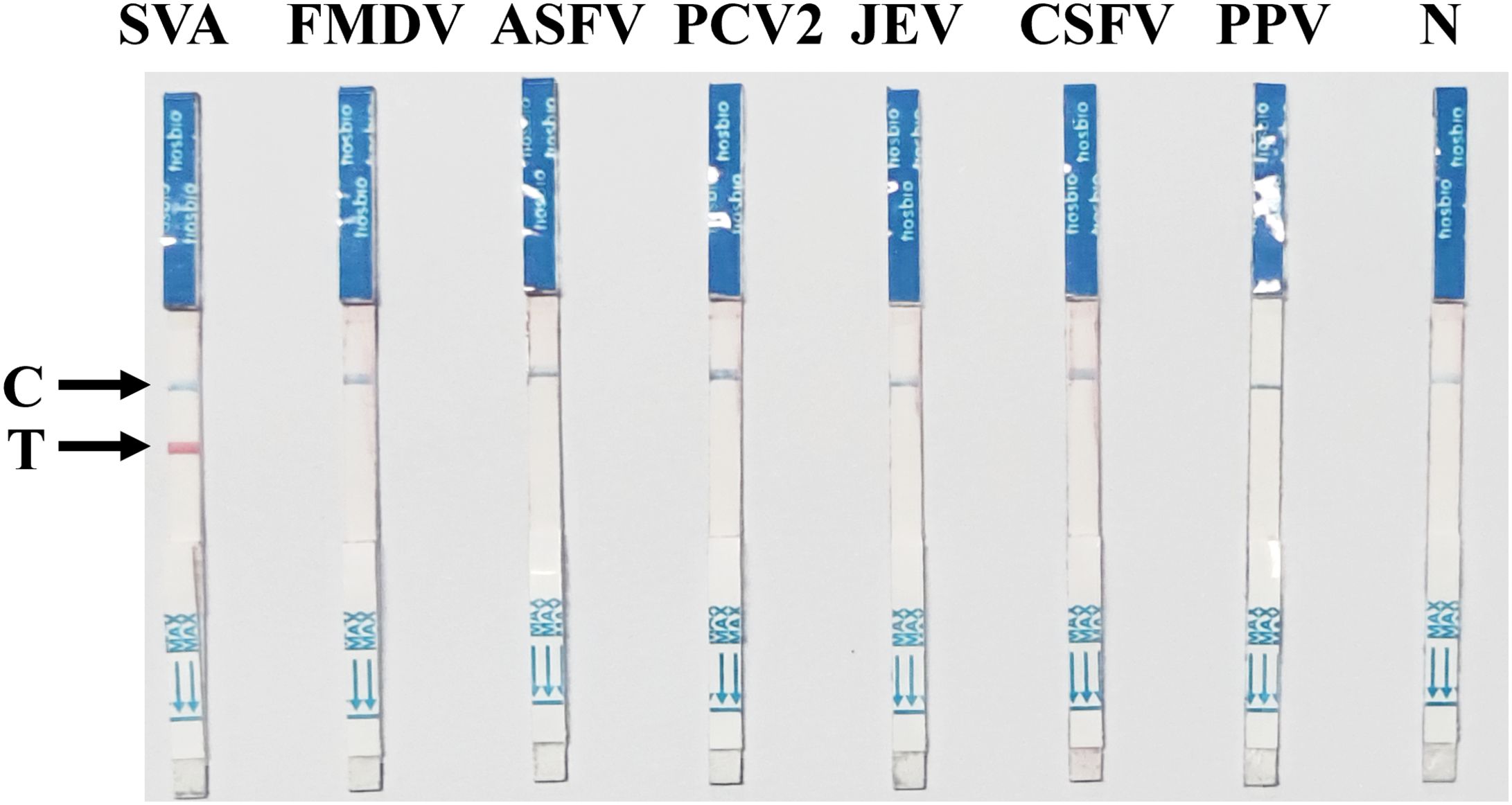

Figure 5. Specificity of the SVA RAA-LFD assay. The nucleic acids of a batch of pathogens, including FMDV, ASFV, PCV2, JEV, CSFV, and PPV, were used to evaluate the specificity of the SVA RAA-LFD assay.

3.5 Analytical sensitivity of the SVA RAA-LFD assay

To analyze the sensitivity of SVA RAA-LFD detection, this method was used to detect SVA pMD18-SVA-3D plasmids, DNA amplification products, and viral diluted tenfold (3.86×1010~3.86×100 copies/µL, 8.76×101~8.76×10-9 ng/µL, and 1×108.25~1×10-1.75 TCID50/mL, respectively). PCR and RT-qPCR were performed as parallel experiments. The results (Figure 6) showed that the lowest concentration of template detection of RAA-LFD for SVA plasmids (Figure 6A), DNA amplification product (Figure 6B), and viral fluid (Figure 6C) were 3.86×101 copies/µL, 8.76×10-7 ng/µL, and1×100.25 TCID50/mL, respectively. The sensitivity of the SVA RAA-LFD assay was significantly higher than that of the PCR assay, yet slightly less than 10 times that of the RT-qPCR assay. However, the sensitivity of this method in detecting the plasmid concentration remained consistent with that of the RT-qPCR assay.

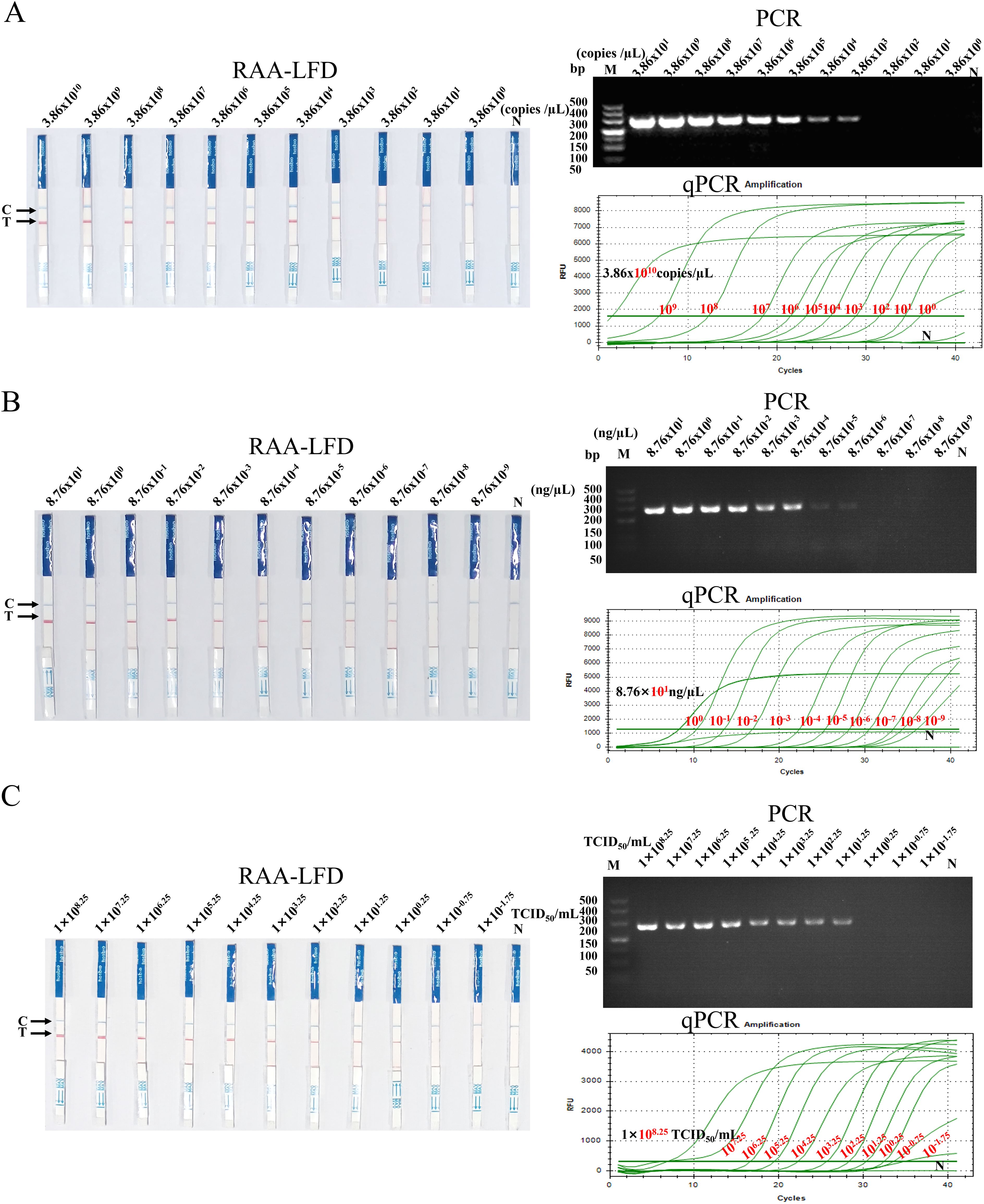

Figure 6. Sensitivity of the SVA RAA-LFD assay. (A) The results of detecting serially diluted pMD18-SVA-3D plasmids using the three methods. (B) The results of detecting serially diluted SVA DNA amplification product using the three methods. (C) The results of detecting serially diluted SVA viral fluid using the three methods. M: 500 bp DNA marker, N: Negative control, Cycles>35: Negative.

3.6 Repeatability and reproducibility of the SVA RAA-LFD assay

The SVA RAA-LFD assay for three different concentrations of the pMD18-SVA-3D plasmid showed all positive reaction signals at the T-line, with good reproducibility across three replicates. There was a slight difference in the intensity of the detection line positive response signal for the lowest detection concentration repeatability experiments, but all three replicates resulted in positive results (Figure 7).

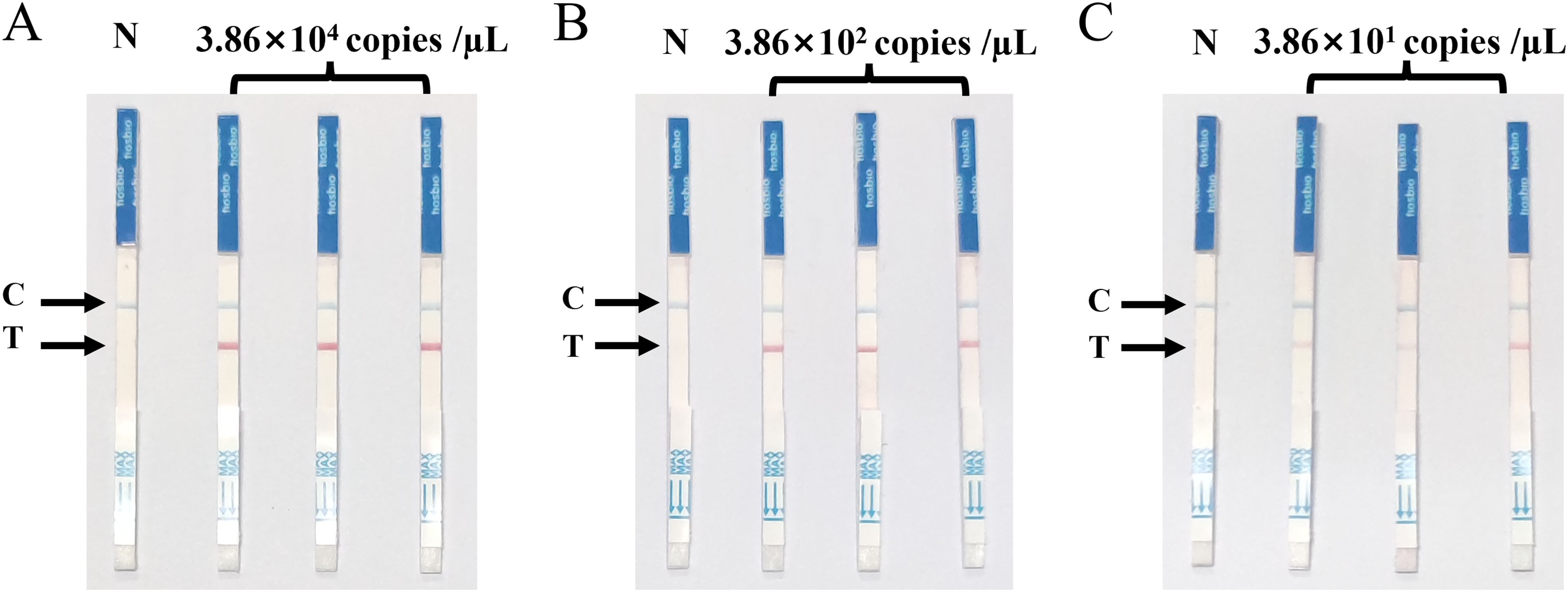

Figure 7. Repeatability of the SVA RAA-LFD assay. (A) Strong positive duplicate test of the SVA RAA-LFD assay for plasmid concentration of 3.86×104 copies/µL. (B) Moderate positive duplicate test of the SVA RAA-LFD assay for plasmid concentration of 3.86×102 copies/µL. (C) Weak positive duplicate test of the SVA RAA-LFD assay for plasmid concentration of 3.86×101 copies/µL.

3.7 Diagnostic performance of the SVA RAA-LFD assay evaluated with clinical swine samples

To further assess the clinical performance of the SVA RAA-LFD assay, forty-four clinical samples were tested using the assay. Parallel experiments were conducted using PCR and RT-qPCR methods. The results of the PCR and RAA-LFD methods are presented in Figure 8, while the comparative outcomes of these three methods are displayed in Table 2. Specifically, the RAA-LFD method successfully detected 27 positive samples, the RT-qPCR method identified 27 samples, and the PCR method identified 24 samples. Notably, the RAA-LFD and RT-qPCR methods exhibited consistent detection rates, demonstrating the clinical feasibility of the SVA RAA-LFD assay in this study.

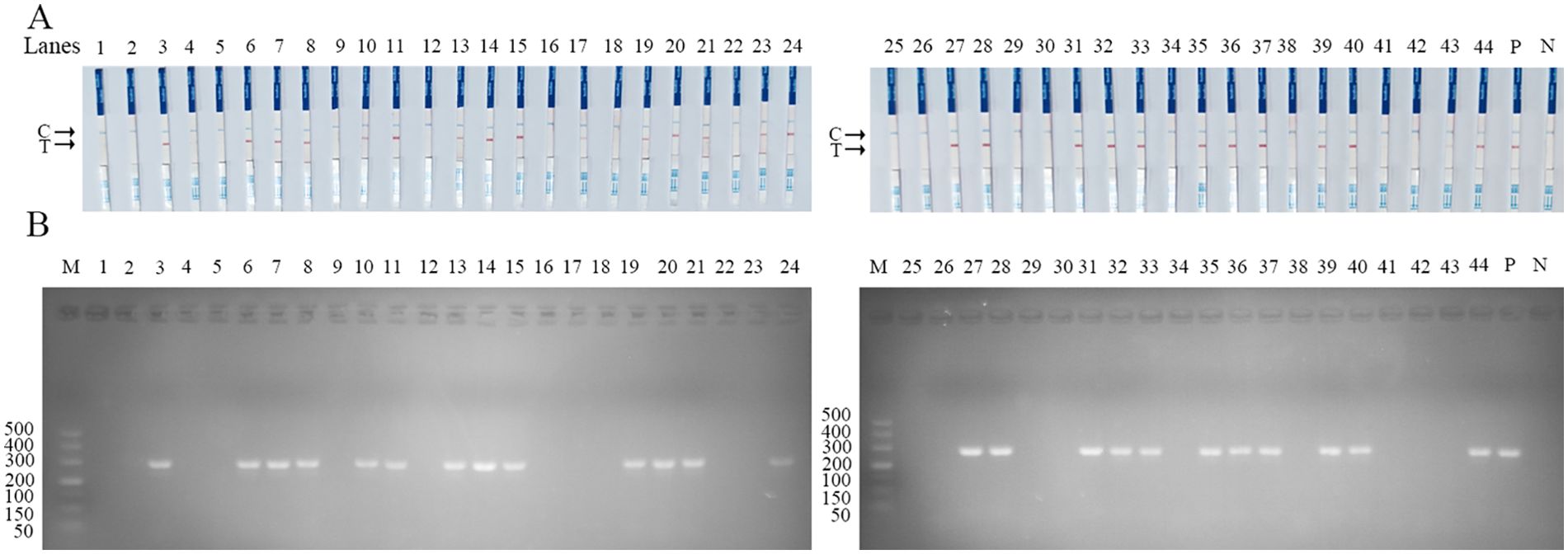

Figure 8. Performance of SVA RAA-LFD on clinical swine samples. (A) The result of clinical swine samples detection by the SVA RAA-LFD assay. (B) The result of clinical swine samples detection by conventional PCR method. Lanes1–44 Different clinical swine samples were preserved in our laboratory. N, Negative control; P, Positive control; M, 500 bp DNA marker.

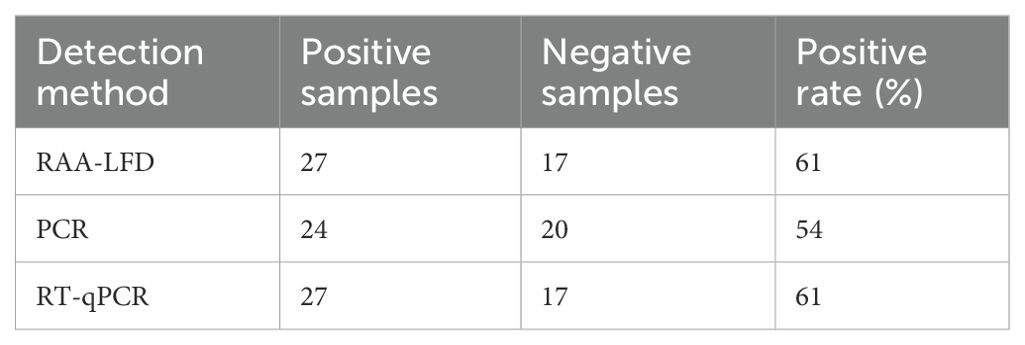

Table 2. Clinical application of the SVA RAA-LFD assay.

4 Discussion

SVA is a recently emerged pathogen of pigs that is both pathogenic and infectious, and it is clinically indistinguishable from other pathogens causing vesicular lesions in pigs, including FMDV. Furthermore, contemporary SVA isolates exhibit significant genetic divergence and evolution compared to historical strains, demonstrating a trend toward greater pathogenicity (Chen et al., 2019; Fernandes et al., 2018; Jiang et al., 2021; Joshi et al., 2016, 2020; Li et al., 2024; Wang et al., 2019; Zhang et al., 2020). Early diagnosis of SVA is critical not only for providing valuable epidemiological information and for the rapid initiation of prevention and control strategies but also for facilitating the accurate diagnosis, prevention, and control of other porcine vesicular epidemics, particularly FMD. Therefore, developing a highly specific and sensitive rapid diagnostic method for SVA is essential to provide effective technical support for these needs.

RAA is a novel molecular biology assay that allows for the amplification of large amounts of target nucleic acids in a short period, which has been widely used in the detection of a variety of pathogens that infect livestock or humans (Chen et al., 2022; Fan et al., 2020; Liu et al., 2023; Tian et al., 2023; Zhao et al., 2024a). In this study, we first established a rapid visualization assay specific to SVA by combining RAA with LFD. Initially, to ensure optimal sensitivity and specificity during the development of the SVA RAA-LFD assay, we identified the conserved region of the SVA 3D gene as the target sequence by aligning the nucleotides of multiple sequences obtained from GenBank. We successfully screened for the optimal primer pair and designed the nfo-probe with the highest match.

Furthermore, building upon the preliminary SVA RAA-LFD assay, we fine-tuned the reaction time and temperature parameters. This adjustment allows the assay to be completed in just 17 minutes at 35 °C, comprising 15 minutes for the RAA basic reaction and 2 minutes for LFD processing. These modifications enhance the accuracy and efficiency of the developed assay. Subsequently, we further evaluated the specificity and sensitivity of the optimized assay. The final detection data showed that the lowest detection limits of the established assay for pMD18-SVA-3D plasmid, DNA amplification product, and viral were 3.86×101cpoies/µL, 8.76×10-7 ng/µL, and 1×100.25 TCID50/mL, respectively. The SVA RAA-LFD assay we developed is 100 times more sensitive to plasmids than the SVA 3D-based PCR method studied by Qian et al. (Qian et al., 2016) and nearly consistent with the VP1-based RT-qPCR studied by Bracht et al (Bracht et al., 2016).

To assess clinical applicability, we tested forty-four clinical samples using the RAA-LFD assay, which showed a positive detection rate consistent with RT-qPCR. In comparison with the other two detection methodologies, the PCR assay detected three fewer positive samples. This discrepancy may arise from the low viral load present in the clinical samples, which could be beneath the PCR assay’s limit of detection, or it may be attributable to the primers’ insufficient specificity for the identification of SVA within the clinical samples. The RAA-LFD assay established in this study produced T-line specific positive reaction signals only for SVA, with no cross-reactivity to other common swine pathogens, including FMD, and demonstrated good reproducibility. In summary, the developed SVA RAA-LFD assay exhibits excellent sensitivity, specificity, and clinical applicability, making it a promising method for detecting SVA.

It is well known that the primary advantage of RAA is that it does not require an expensive thermal cycler to amplify the target gene. Compared to standard laboratory molecular biology detection techniques such as PCR and qPCR, RAA is more convenient and time-efficient, requiring only a water bath or a portable suitcase lab for operation, thereby enabling on-site diagnosis of the target gene (El Wahed et al., 2021). In recent years, other isothermal amplification techniques, such as LAMP, have been used for SVA detection (Armson et al., 2019; Zeng et al., 2018). However, compared to LAMP, RAA offers two distinct advantages. First, while LAMP necessitates a reaction temperature range of 60~65°C, RAA operates efficiently at a lower temperature, approximately 37°C. In our study, target gene amplification occurred within a temperature range of 34~40°C, with 35°C being the most favorable; notably, the reaction can even proceed at body temperature. Second, LAMP requires 4~6 primers to support the amplification reaction. In contrast, the RAA reaction can be accomplished with just two conventional primers or by adding a specific probe.

The combined application of RAA and LFD integrates the high sensitivity of polymerase chain reaction with immunochromatographic techniques, enabling rapid visualization of detection results (Homklinkaew et al., 2023; Li et al., 2022; Yu et al., 2019). In brief, this method involves the combination of target genes labeled with specific probes with antibodies conjugated to colloidal gold encapsulated on the test strip, ultimately translating the detection results into visible color signals discernible to the naked eye. The simplicity of operation and lack of requirement for expensive instrumentation make this method suitable for application in remote areas and field settings.

Regrettably, the method established in this study was not validated with clinical samples from multiple countries. However, previous studies have shown that the RAA reaction can accommodate mismatches of 5-9 nucleotide bases (Abd El. Wahed et al., 2013). Upon aligning multiple SVA sequences from various countries, including China, the USA, and Brazil, we found that the individual base differences in the selected amplification sequences were less than 5 nucleotides, indicating the potential applicability of the assay used in this study. Testing a large variety of clinical swine samples would provide more robust evidence for the feasibility of the developed method. Therefore, we intend to seek out multiple clinical samples for further validation in subsequent investigations.

In summary, this study has established a convenient and sensitive RAA-LFD assay based on the conserved region of the SVA3D gene. The assay provides visually detectable results in under 17 minutes using an instrument-free technique. This makes it suitable for point-of-care diagnosis for SVA in the field or remote areas lacking instrumentation.
